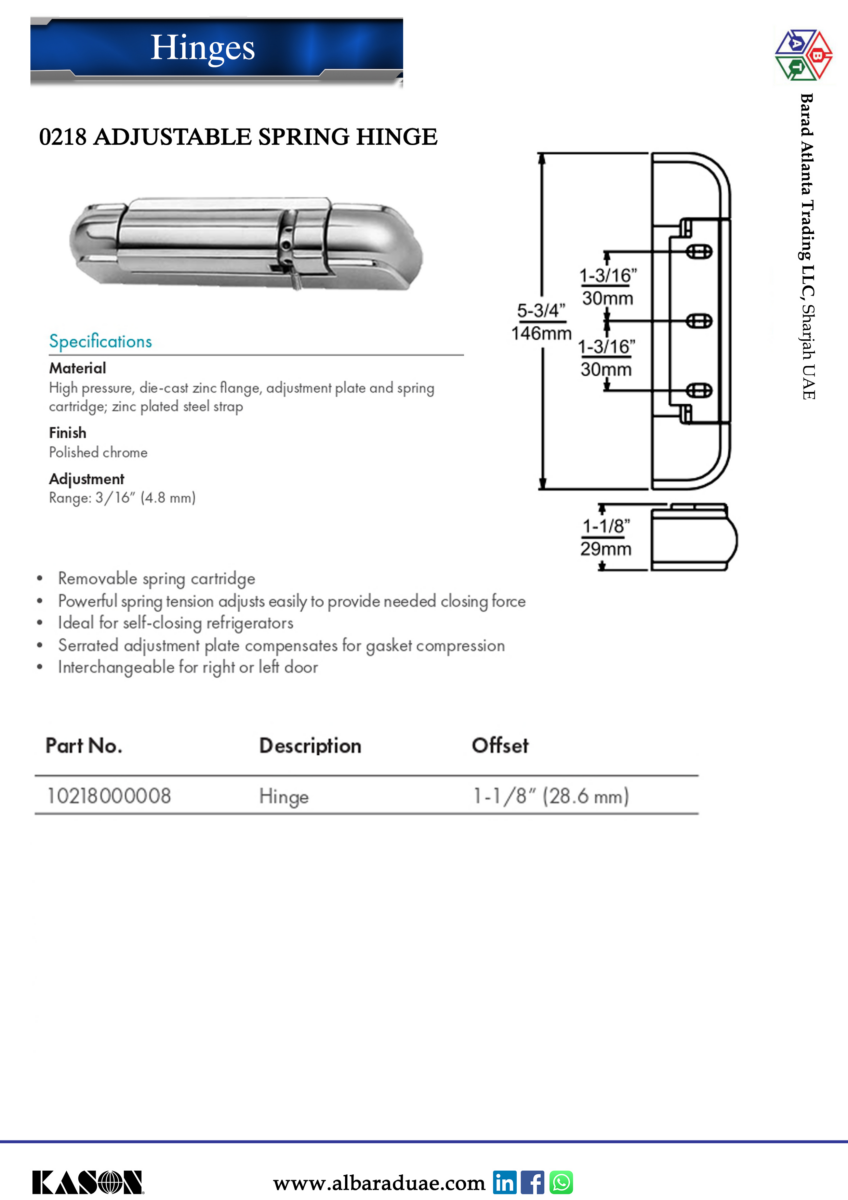

KASON 0218 Adjustable Spring Hinge

Description

* Removable spring cartridge
* Powerful spring tension adjusts easily to provide needed closing force
* Ideal for self closing refrigerators
* Adjusts with serrated adjustment plate to compensate for gasket compression
* Interchangeable for right or left open door

Specifications

MATERIAL
High pressure, die-cast zinc flange, adjustment plate and spring cartridge; zinc plated steel strap.

FINISH |: Polished chrome.

ADJUSTMENT RANGE : 3/16″ (4.8 mm).

MOUNTING : Drilled and countersunk for No. 10 (5.0 mm) screws.

Part No. 10218000008

Brand : KASON

Country of Origin : USA
