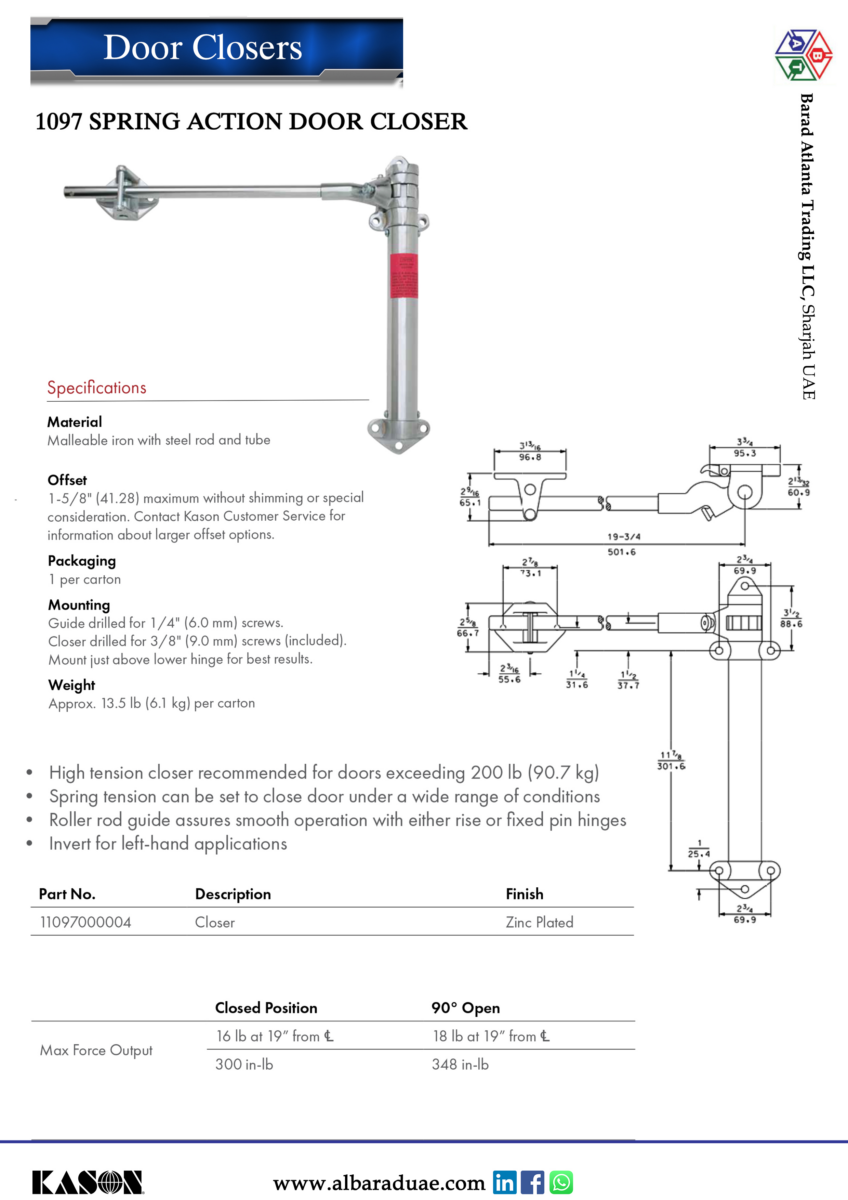

KASON 1097 Spring Action Door Closer

Description

High tension closer recommended for doors exceeding 200 lb (90.7 kg) .

• Spring tension can be set to close door under a wide range of conditions
• Roller rod guide assures smooth operation with either rise or fixed pin hinges
• Invert for left-hand applications

MATERIAL : Malleable iron with steel rod and tube.

FINISH : Zinc Plated.

MOUNTING : Guide drilled for 1/4″ (6.0mm) screws. Closer drilled for 3/8″ (9.0mm) screws. Mount just above lower hinge for best results.

OFFSET : 1-5/8” (41.28) maximum without shimming or special consideration.

Part No. 1097000004
