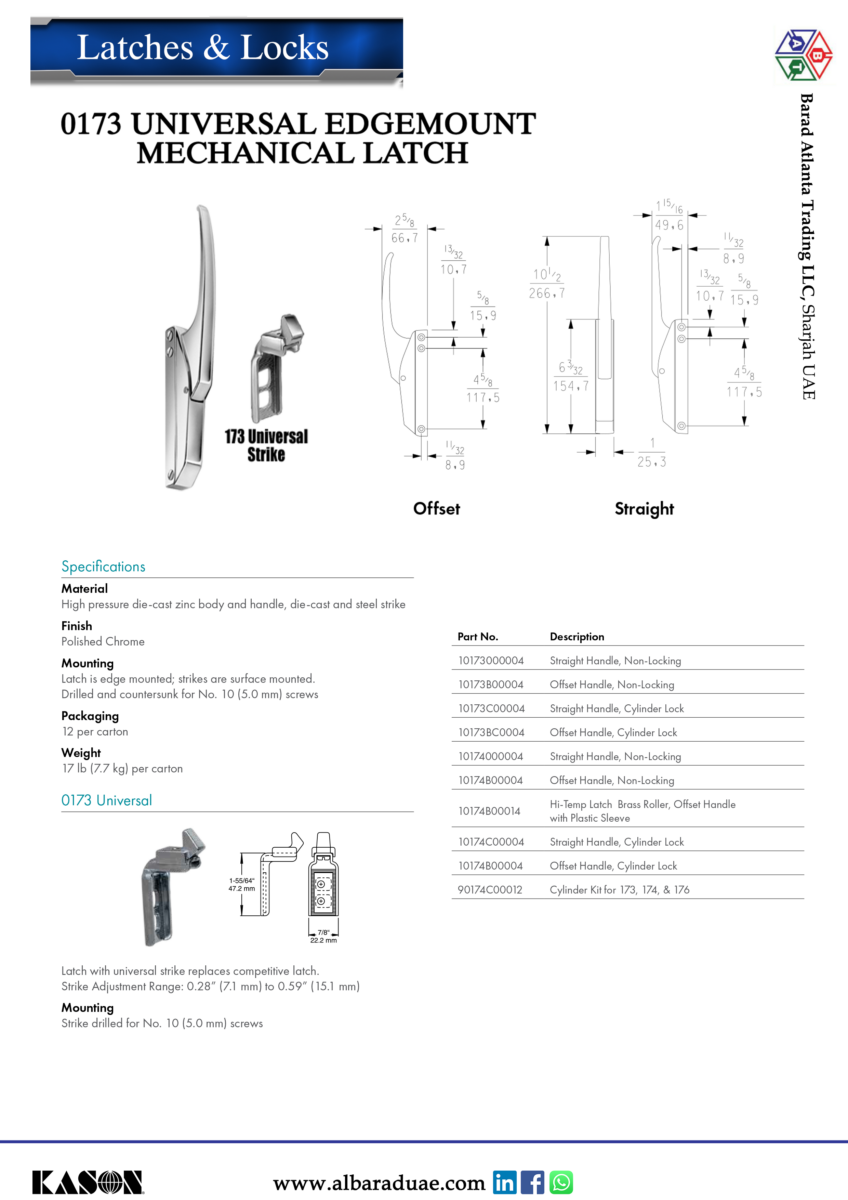

0173 UNIVERSAL EDGEMOUNT MECHANICAL LATCH

Description

* Positive latching keeps door shut tight; guards against pop-opens
* Finger-tip touch opening
* Cylinder locking and non-locking models
* Two-way adjustment compensates for door sag and gasket wear
* Use with all standard gaskets for economical installation
* Compact size fits most units
* Latch with universal strike replaces competitive latch
* Strike Adjustment Range: 9/32″ (7.1 mm) to 19/32″ (15.1 mm)

Specifications

MATERIAL : High pressure die-cast zinc body and handle, die-cast and steel strike.

FINISH : Polished Chrome.

MOUNTING : Latch is edge mounted; strikes are surface mounted. Drilled and counter- sunk for No. 10 (5.0 mm) screws.
Strike drilled for No 10 (5.0mm) screws

Part No. Latch – 0173C00004

Brand :KASON

Make : USA
