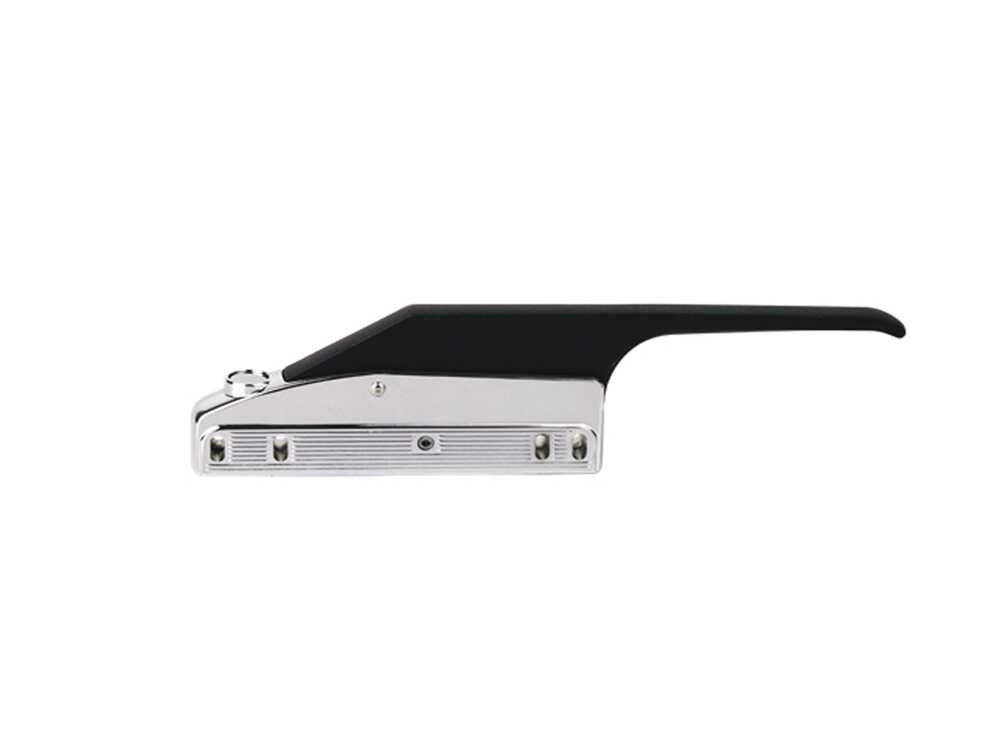

Description
* Versatile family offers multiple choices for heated and refrigerated applications
* Powerful magnetic force assures positive, air-tight door closure
* Kason ‘breaker action’ quickly releases magnet for fast door opening
* Two-way adjustment adapts latch for changing door alignment
* Adjustable latch body compensates for gasket wear
* Strike adjusts vertically to accommodate door sag on locking models
* Fast installation
STANDARD MAGNET : Nitrile material; holding force approx. 50 lb. (222.0 N).
Specifications
MATERIAL: High pressure die-cast zinc body and adjustment plate; zinc die-cast or glass reinforced composite handle; one piece steel strike.
MOUNTING : Latch is edge mounted; strike is surface mounted. Drilled and countersunk for No. 10 (5.0 mm) screws.
LOCK SELECTION : Key cylinder lock or knob turn. Non-cylinder latches can be converted to cylinder locking. Cylinder locks may be keyed alike or differently;
FINISH : Polished chrome latch body; black composite handle.
Part No. Latch – 10171BC0008
Brand : KASON
Country of Origin : USA.
