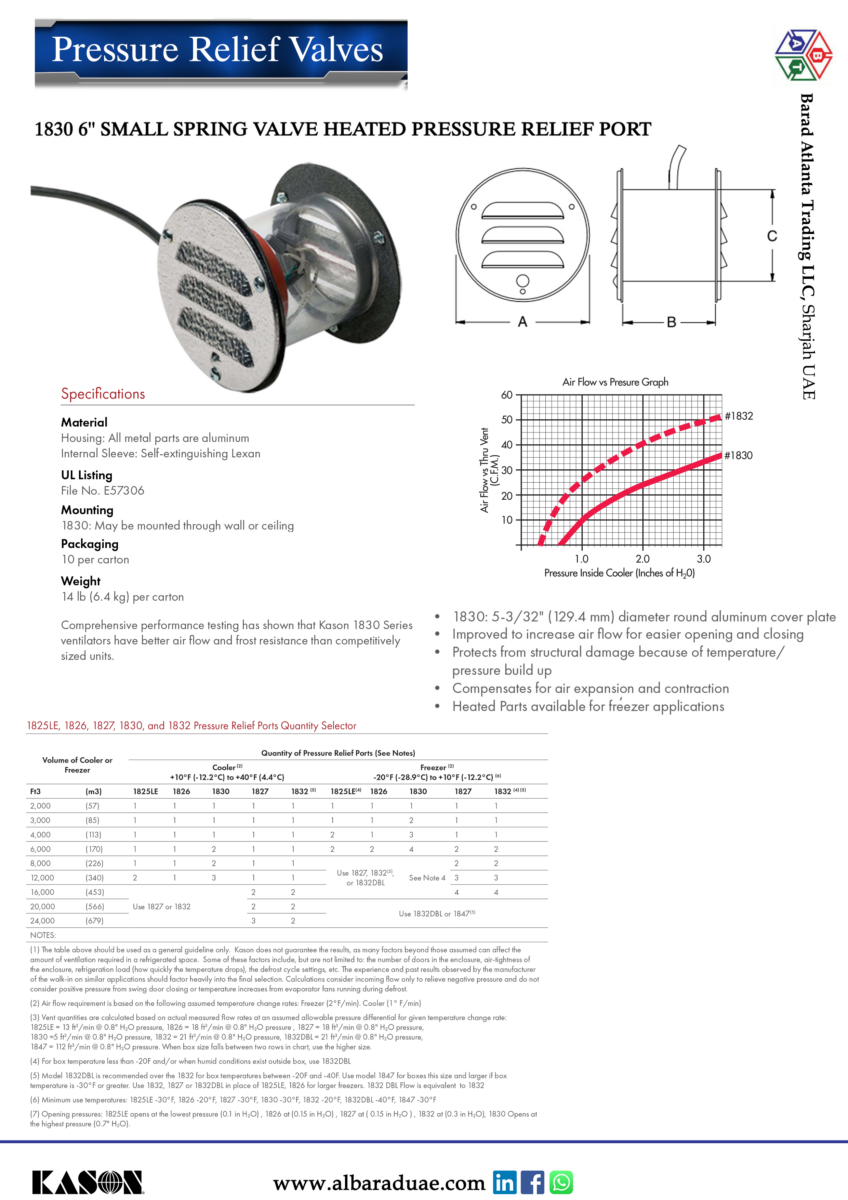

Pressure Relief Port 6” KASON 1830

Description

• Protects from structural damage because of temperature/pressure build up.
• Compensates for air expansion and contraction
• Improved to increase air flow for easier opening and closing

Walk-In operation temp range: -30°F(-34.3°C) to 40°F(4.4°C)

Housing: All metal parts are aluminum

Internal Sleeve: Self-extinguishing Lexan

COVER PLATE : 5-3/32″ (129.4mm) diameter round aluminum cover plate.

LENGTH : Standard for 4″ (101.6mm) wall thickness

MOUNTING : May be mounted through wall or ceiling.

INPUT POWER : 240 V, 23 W, 0.1 Amp

Part No. Part No.: 1183000000806

Brand : KASON

Country of Origin : USA

CERTIFICATIONS : UL Listing File No. E57306
